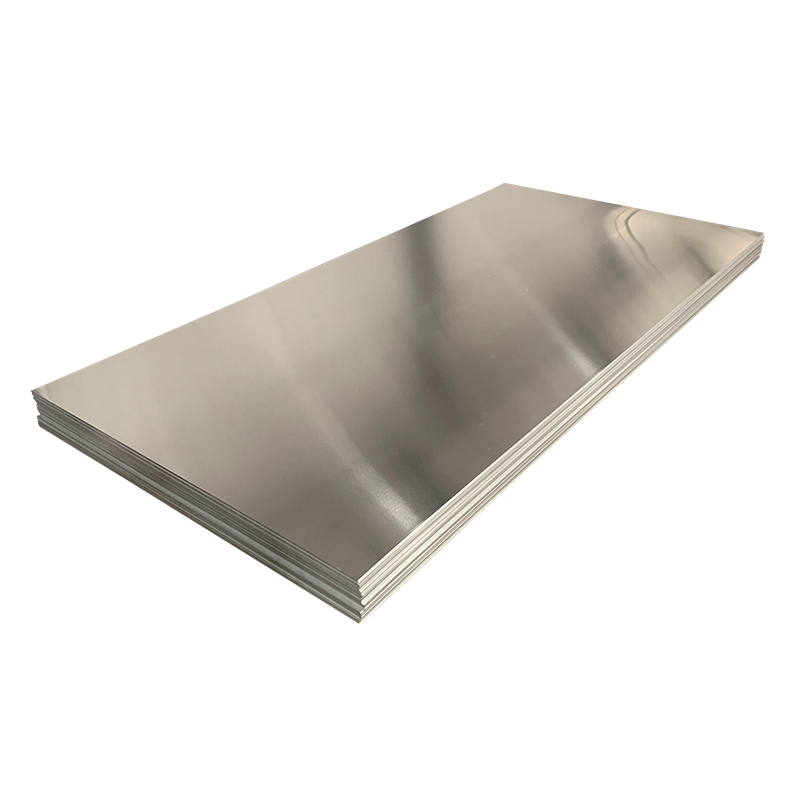

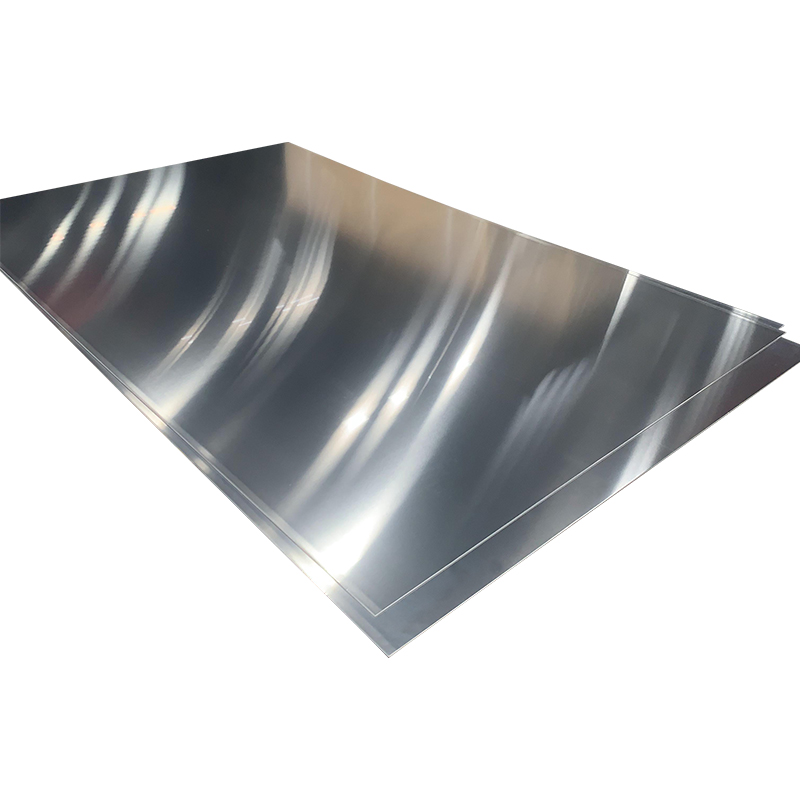

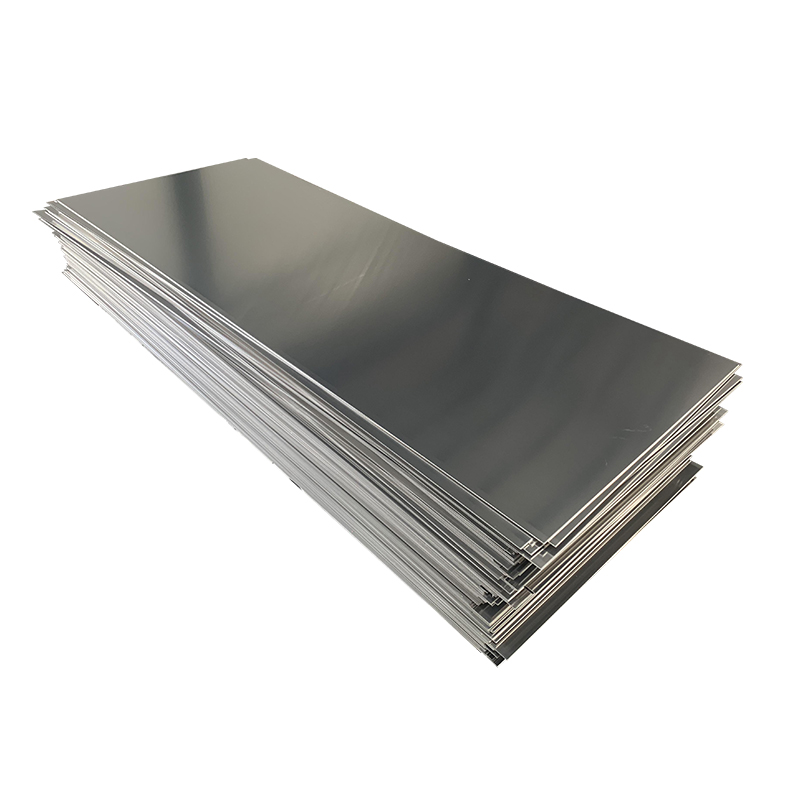

Aluminum sheet

  • Aluminum sheet
  • Aluminum sheet
  • Aluminum sheet
  • Aluminum sheet

PRODUCT FEATURES

Alloy Application field

1050 Insulation, food industry, decoration, lamp, traffic signs etc.
1060 Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts etc
1070 Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
1100 Cooker, building material, printing, heat exchanger, bottle cap etc
2A12 2024 Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts, car parts and various other structural parts.
3003 3004
3005 3105 Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard.
Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc
5052 Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device, equipment and medical device panel etc.
5005 Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
5086 Ship board, deck, bottom and edge panel etc.
5083 Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board, automotive and aircraft panel, cooling device and automotive molding etc.
5182
5454
5754 Tanker body, marine facilities, pressure container, transportation etc.
6061
6083
6082 Railway inside and outside parts, board and bed plate.
Industry molding
Highly stressed applications includes Roofing construction, transportation, and marine as well as mould.
6063 Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products.
7005 Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers
7050 Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment
7075 Aerospace industry, military industry, electronic etc
6061 aluminum price 3000 series high quality aluminum sheet China aluminum plate supplier


1060 aluminum sheet contains 99.6% Al, which is also called pure aluminum sheet. Because the production process of 1060 aluminum sheet is relatively single, the technology is relatively mature, and the market price is very advantageous. It is often used in the industrial manufacture of large storage tanks. So, It’s also a commonly used industrial pure aluminum in the aluminum sheet family. Of course,1060 aluminum sheet has the characteristics of excellent electrical conductivity, thermal conductivity, plasticity, and extensibility of pure aluminum, but its own strength is low, it cannot be strengthened by heat treatment, and machinability is not good. Therefore,1060 aluminum sheet is also used in products with low requirements for strength. Such as face mask nose wire, billboards, nameplates, building exterior decoration, kitchen sinks, lamp holders, fan leaves, electronic parts, clock and disk surfaces, reflective appliances, etc.



Usage of 1060 Aluminum Sheet

Hot-rolled 1060 aluminum sheet uses: Face mask nose wire, soft battery connection, bus interior, auto parts, aluminum-plastic panel, signage, lamps, wide curtain wall, bus luggage rack / floor / pattern board, etc.

Hot rolled medium-thickness 1060 aluminum sheet uses: Aluminum bus bar, car radiator, new energy car charging pile, mold, etc.

Hot-rolled 1060-O aluminum sheet uses: Face mask nose wire, automobile heat shield, electronic tag, soft battery connector, the battery tabs materials.

THE MAIN PARAMETER

Product Aluminum sheet
Material 1050/1060/1070/1100/1200/2A21/2021/3003/5052/5083/6061/6082/7075
Thickness 0.1mm-20mm  or As required
Width 800mm-2200mm or As required
Length 1000mm~9000mm  or As required
Surface Oxidation, embossed, mill, bright, polished,hair line,brush,sand blast,checkered,etc.
Temper H16 H32 H34 H36 H111 H112 H116
Package Type Export standard package: bundled wooden box, suit for all kinds of transport, or be required.
1050 3003 3004 6061 7075 Anodized Prepainted Color Coated Aluminum Coil Price per kg
Container 20ft GP:5898MM(Length)*2352mm(Width)*2393mm(High)
40ft GP:12032mm(Length)*2352mm(Width)*2393mm(High)
40ft HC:12032mm(Length)*2352mm(Width)*2393mm(High)

Chemical composition :
Grade SI FE CU MN MG CR NI ZN AL
1070 0.2 0.25 0.04 0.03 0.03     0.04 99.7

Mechanical Property:
Mechanical Property
AL UMINUMALLOY Grade NormalTemper Temper Tensile StrengthN/mm2 Yield StrengthN/mm2 Elongation% Brinell HardnessHB

            Plate Bar
1XXX 18264 O,H112,H O 78 34 40   20
  21916 O,H112,H O 70 30 43   19
AI-Cu(2XXX) 2019 O,T3,T4,T6,T8 T851 450 350 10
  2024 O,T4 T4 470 325 20 17 120
Al-Mn(3XXX) 3003 0,H112,H 0 110 40 30 37 28
  3004 O,H112,H O 29221 70 20 22 45
AI-Si (4XXX) 4032 O,T6,T62 T6 380 315   9 120

AI-Mg(5XXX) 5052 O,H112,H H34 260 215 10 12 68
  5083 O,H112,H O 290 16438   20
AI-Mg-Si(6XXX) 6061 O,T4,T6,T8 T6 310 275 12 15 95
  6063 O,T1,T5,T6,T8 T5 31048 145 12   60
Al-Zn-Mg(7XXX) 7003 T5 T5 315 255 15   85
  7075 O,T6 T6 570 505 11 9 150


Application:
Application 1) Other production tools.
2) Solar reflective film
3) The appearance of the building
4) Interior decoration: ceiling, wall, etc.
5) Furniture cabinet
6) Elevator decoration
7) Signs, nameplates, bag making.
8) Car interior and exterior decoration
9) Househol Dappliances: refrigerators, microwave ovens, audio equipment, etc.
10) Consumer electronic products: mobile phones, digital
   cameras, MP3, U disk, etc.
