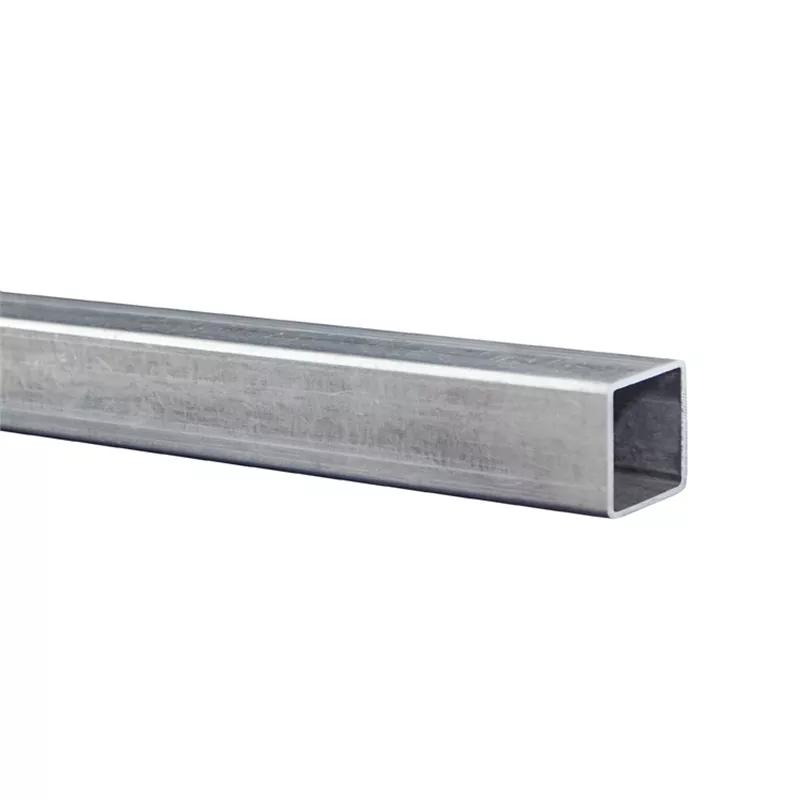

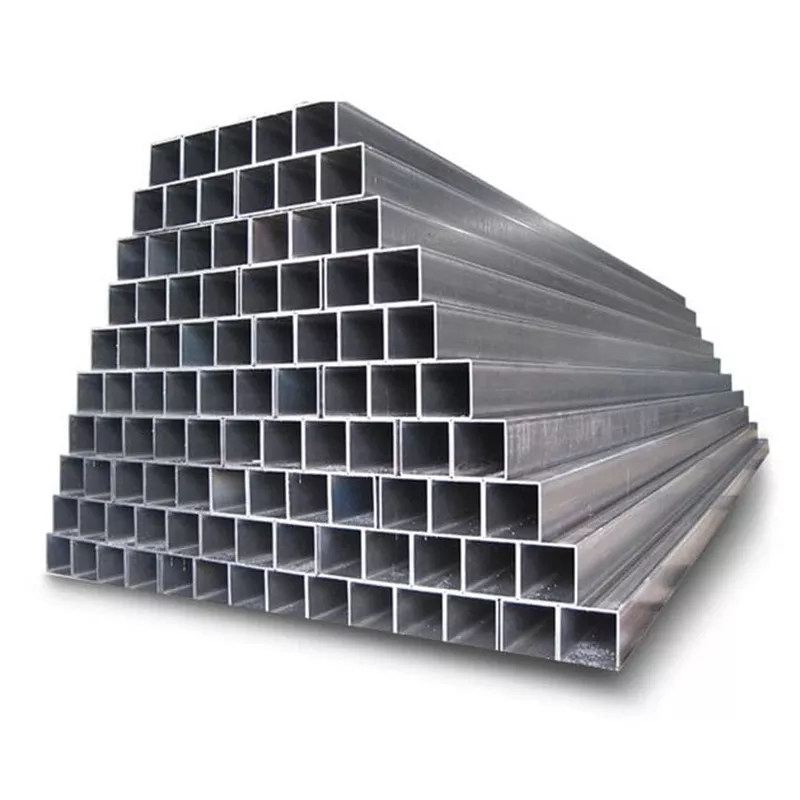

Galvanized Pipe/ Gi square tube

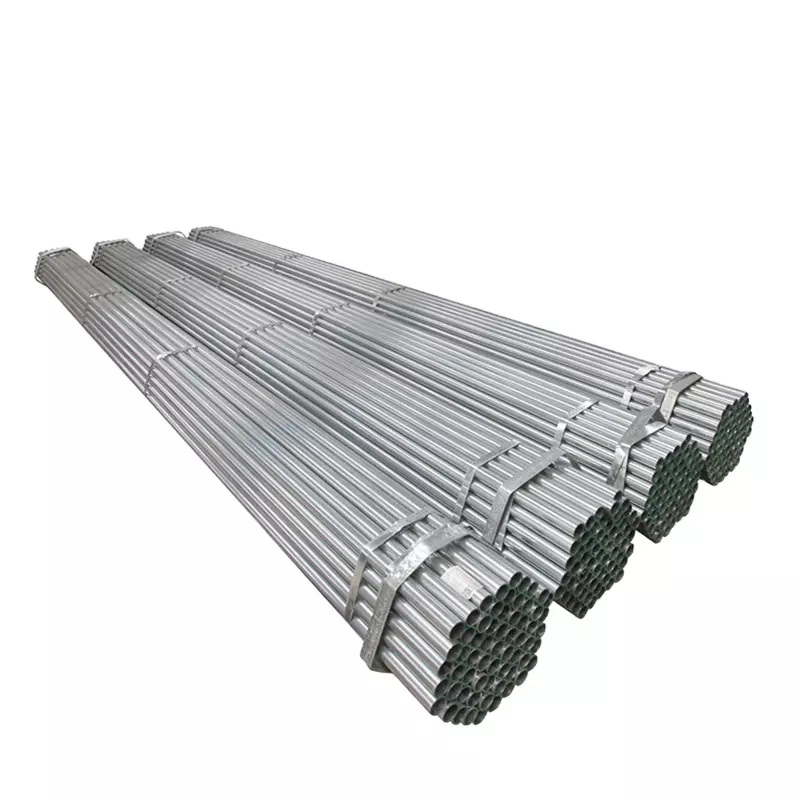

Galvanized Steel Pipe, is stocked in A53 Tested Pipe up through 6" sch 40 and A500 for sizes 8" to 12" diameters. All pipes have been hot dipped in a zinc rich galvanizing process. Galvanized pipes are a lower cost alternative to stainless steel to achieve rust free protection for up to 30 years, while maintaining comparable strength with a durable surface coating. Metals Depot stocks many sizes in precut lengths, full mill lengths or we can hot dip virtually any size and quantity required for your welding or construction project.
Galvanized pipes can be cut, machined or welded by common methods used for regular steel, but adequate ventilation should be used to avoid inhalation of fumes when heated. Saw cut ends of our pre-cut lengths are not galvanized and should be treated with a cold galvanizing compound to maintain protection once your project is complete. Any holes drilled or welded areas should also be treated. 8" to 12" sizes may have a 3/4" hole present in ends from the dipping process. All dimensions are before the galvanizing process. All sizes are plain end, not threaded.
What is galvanized steel pipe?
Galvanized steel pipe is the carbon steel pipe that are coated with a protective layer of zinc. The zinc layer served as a sacrificial layer, it will get rust before the carbon steel under neath it. Galvanized steel pipe include Two types: hot dipped galvanized steel pipe and cold galvanized steel pipe. Galvanized layer will strengthen the anti-corrosion performances of steel pipe.
Why use zinc as the coated layer?
Why use zinc? Because of zinc element is active than steel element. On one hand, zinc oxide of galvanized steel pipe surface is compact, it can stop oxidation(corrosion). On the other hand, when electric-chemical corrosion has occurred, the first kind of metal corrupted is zinc rather than steel. The zinc layer effect is stop corrosion speed, and prolong the life of steel pipe.
Galvanized steel pipe application :
Galvanized steel pipe mainly used in transmission of coal gas, steam. It was used as water pipe, but after several years past, there were many rust in the pipe, and water get yellow color for carrying iron oxide. The water not only polluted dishes or other sanitary ware, but also carrying bacteria produced in the internal surface which not smooth . As a result of the corrosion, the water contains heavy metal element is too much and is harmful to people’s health. For this reason, developed countries gradually banned it using as water pipe since 1960s.
Galvanized steel pipe types
Galvanized steel pipe include two kinds:
1. Hot dipped galvanized steel pipe.
2. Cold galvanized pipe, also called electric galvanized pipe.
Galvanized steel pipe sizes and specifications
Nominal diameter (inch): 1/2~4
Nominal wall thickness (mm): 2.0~4.5
Test pressure index: Diameter: 10.2~168.3 mm 3 MPa
Diameter: 177.8~323.9 mm 5 MPa
Hot dipped galvanized steel pipe introduction
Hot dipped galvanized steel pipe is in manufacturing process using steel pipes of removed rust dipped into zinc liquid of 500℃ temperatures, and making steel surface attached zinc layer so as to achieve the purpose of anti-corrosion.
Hot galvanizing is a kind of effective anti-corrosive treatment, used in kinds of steel structural products. Since 1836 France used hot galvanizing in industry the first time, it have been more than 180 years. However following by the development of cold rolled steel, it has greatly developed in recent decades. With the high-voltage transmission, transportation, communications, the protection products require higher standards, hot galvanizing demand is also increasing.
The processing of hot galvanizing:
Finished pickling – washing – plating – drying – hanging plating – cooling – medicine – cleaning – grinding – hot galvanized finish.
hot galvanized steel pipe of Zinc thickness
Hot galvanized steel pipe zinc layer thickness is 35μm, and the most thick is up 650μm. Instead cold zinc layer thickness is only 5-15μm. Zinc layer have the effects of anti air corrosion and electric chemical protection.
The theory of hot galvanized steel pipe’s zinc layer effect to anti corrosion
In the processing of hot galvanizing, it will formed a film of zinc-steel alloy layer first, above it is pure zinc layer. When the air corroded the zinc layer, it will form a layer of ZnO, Zn(OH)2 and basic zinc carbonate protection film. Which have the effect of anti air corrosion. When this film was destroyed, a new one will form. When the zinc layer destroyed heavily, zinc start up electric chemical protection. Zinc as the first element dissolved. It’s obviously that hot galvanized steel have better anti corrosive performances than cold galvanizing pipe.
How long of hot galvanized steel pipe lifetime?
Galvanized steel pipe have long lifetime. But in different conditions the lifetime of use are different. Generally speaking, 13 years in heavy industrial district, 50 years for ocean environment, 104 years in suburbs, 30 years in city. In fact galvanizing have played a role of anti- rusty, it is no need other rust treatment.
Hot galvanizing process specially suitable for kinds of strong-acid, alkali fog and other strong corrosive conditions. This kinds of fastener used a lot in outside of steel tower contribution.
Cold galvanized steel pipe introduction
Cold galvanized steel pipe is using electric chemical processing coated zinc layer on steel pipe. The zinc layer usually 20~30μm thick.
Manufacturing process of cold galvanized steel pipe:
Degreasing – electroplating – passivation – drying – packaging
Zinc thickness for cold galvanized steel pipe
Cold galvanized steel pipe zinc thickness is 5-15 μm, the layer is dense, and there is no inclusion with organic matter.
Cold galvanization technology is no longer recommend for pipe products.
