Stainless steel contains chromium which provides the properties of corrosion resistance at high temperatures. Stainless steel can withstand corrosive or chemical environments due to its smooth surface. Stainless steel products are safe for long-term use with excellent resistance of corrosion fatigue.
Stainless steel bar is the most essential players in the machining industry. Stainless steel bars applications and utilizations rely on the kind of required and come in different forms as well, such as flat bars, round bars, hexagonal bars, square bars. This is why stainless steel bars are chosen to create machine parts and automotive components.
- Machine parts
- Automotive industries
| Product Name | AISI | ASTM | JIS | BS | DIN | W. Nr |
| Flat Bar, Angle Bar | 304 | S30400 | - | - | - | - |
| 316L | S31603 | - | - | - | - | |
|

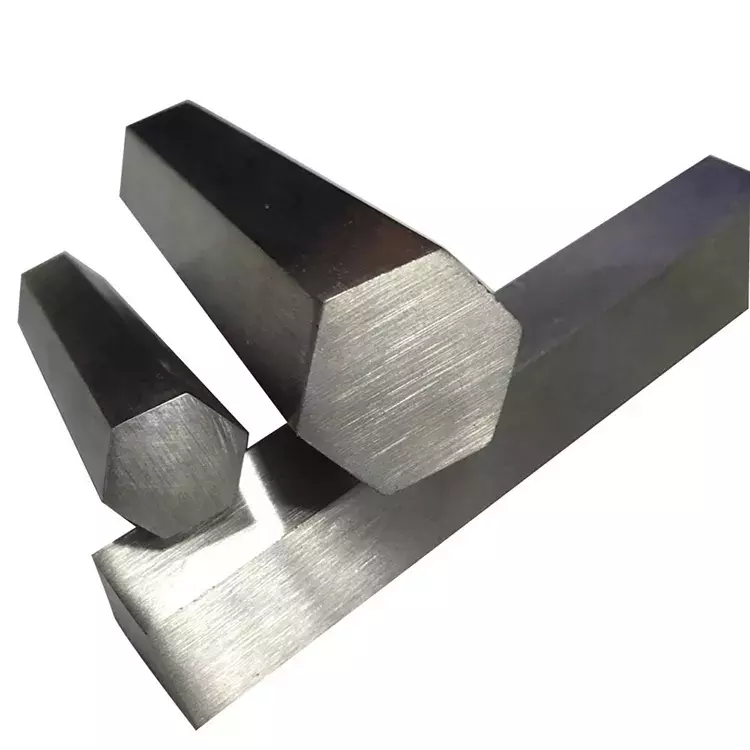

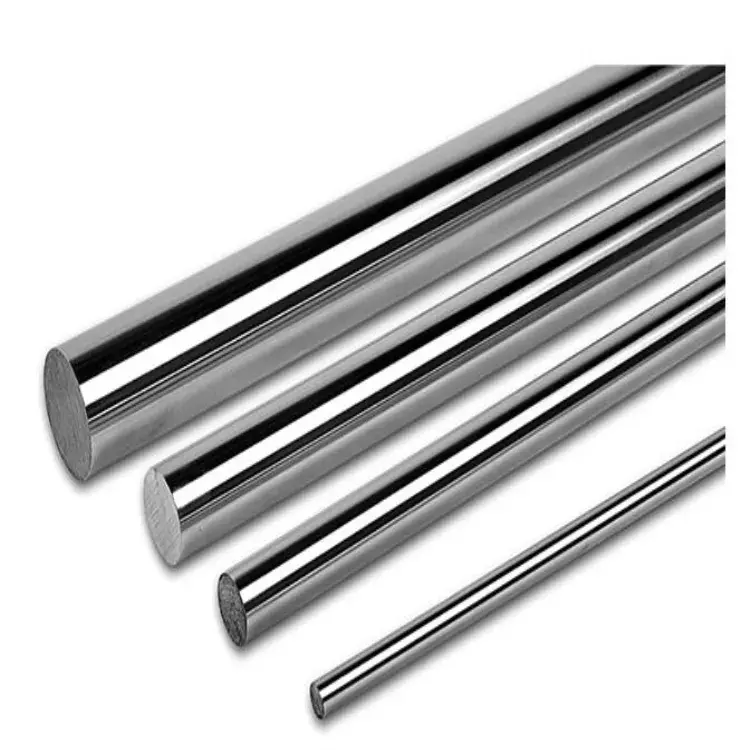

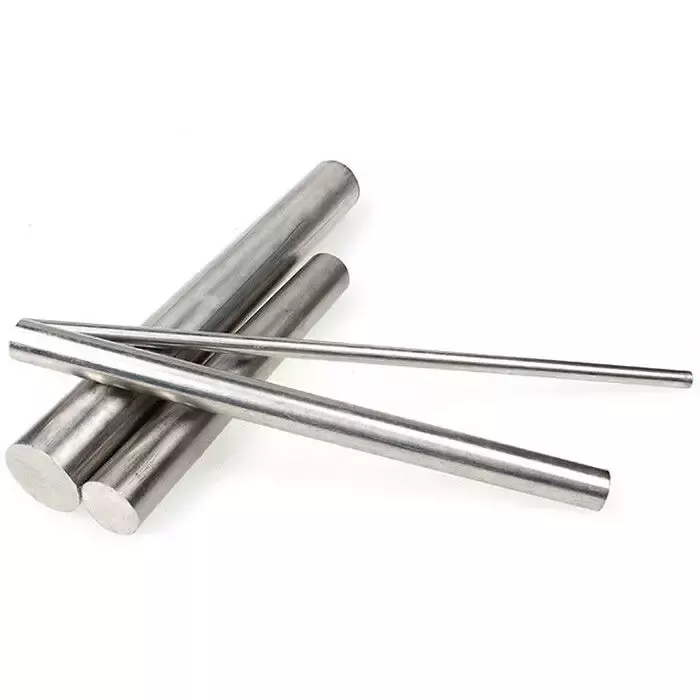

Hot Rolled Bar Peeled Round Bar Cold Drawn Round Bar Cold Drawn Square Bar Cold Drawn Hexagon Bar Centreless Grinding Round Bar |
||||||
| 304 | S30400 | SUS304 | BS304S31 | X5CrNi1810 | 1.4301 | |
| 304N | S30451 | SUS304N1 | - | - | - | |
| 304L | S30403 | SUS304L | BS304S11 | X2CrNi1911 | 1.4307 | |
| 304LN | S30453 | SUS304LN | - | X2CrNiN1810 | 1.4311 | |
| 316 | S31600 | SUS316 | BS316S31 | X5CrNiMo17122 | 1.4401 | |
| 316N | S31651 | SUS316N | - | - | - | |
| 316L | S31603 | SUS316L | BS316S11 | X2CrNiMo17132 | 1.4404 | |
| 316LN | S31653 | SUS316LN | - | X2CrNiMoN17122 | 1.4406 | |
| 430 | S43000 | SUS430 | BS430S17 | X6Cr17 | 1.4016 | |
| 430F | S43020 | SUS430F | - | X7CrMoS18 | 1.4105 | |
| 403 | S40300 | SUS403 | - | - | - | |
| 410 | S41000 | SUS410 | BS410S21 | X10Cr13 | 1.4006 | |
| 416 | S41600 | SUS416 | BS416S21 | - | 1.4005 |
| Product Name | Diameter (mm) |
| Hot Rolled Round Bar | 12~200 |
| Peeled Round Bar | 19~160 |
| Cold Drawn Round Bar | 4.76~100 |
| Cold Drawn Square Bar | 4.76~76.2 |
| Cold Drawn Hexagon Bar | 4.76~76 |
| Centreless Grinding Round Bar | 4.76~101 |
| Product Name | Thickness (mm) | Width (mm) |
| Stainless Steel Flat Bar | 1.5 | 12 |
| 1.5~3.0 | 10~200 | |
| 4.0~5.0 | 16~200 | |
| 6.0 | 19~200 | |
| 8.0~9.0 | 25~200 | |
| 10.0~12 | 30~200 | |
| 14.0 | 35~200 | |
| 15.0~16.0 | 40~200 | |
| Stainless Steel Angle Bar | 2.0 | 15 |
| 3.0~4.5 | 25 | |
| 5.0~6.0 | 30 | |
| 8.0 | 53 | |
| 9.0~10.0 | 62 | |
| 12.0 | 75 | |
| 14.0~16.0 | 94 |
